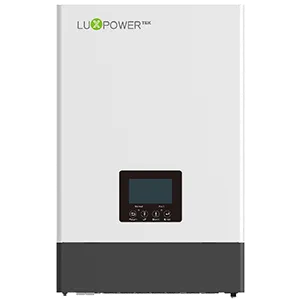

The Lux power 5KW Off-Grid Inverter is a high-performance battery inverter that offers multiple power supply options for your household devices. With this inverter, you can harness the energy from your battery bank and solar panels, providing you with the flexibility and freedom to operate off the grid.
Featuring a 48VDC battery voltage, the Lux power 5KW Off-Grid Inverter ensures efficient power conversion and distribution. The inclusion of a Wi-Fi Dongle enables remote monitoring, allowing you to stay connected to your inverter’s performance and settings.
This inverter supports flexible working modes, allowing you to set the charge and load power supply priorities according to your specific needs. Whether you want to prioritize solar power, battery power, or a combination of both, the Lux power 5KW Off-Grid Inverter gives you the control to optimize your energy usage.
The inverter also features a pure sine-wave output waveform, ensuring a clean and stable power supply for your sensitive electronic devices. With a rated power of 5000VA/5000W and a surge power capacity of 10000VA, it can handle both normal and peak power demands effectively.
The Lux power 5KW Off-Grid Inverter supports parallel operation with up to 9 units, allowing for easy scalability and increased power output if needed. This makes it suitable for a wide range of applications, from small residential setups to larger commercial installations.
In terms of solar charging capabilities, the inverter offers a maximum PV array power of 6000W and includes 2 MPPT controllers. The MPPT range operates at a voltage range of 100VDC to 385VDC, ensuring optimal performance and efficiency. With a maximum solar charge current of 100A and a maximum efficiency of 98%, the inverter effectively harnesses solar energy to charge your battery bank.
To provide additional convenience, the Lux power 5KW Off-Grid Inverter comes with an AC charger. It offers a charge current of 60A and supports AC input voltages ranging from 230VAC. The selectable voltage range ensures compatibility with various appliances, whether it’s personal computers or home appliances.
Equipped with a built-in Battery Management System (BMS), this inverter ensures the optimal performance and safety of your battery system. It is compatible with leading battery brands such as Pylon, Dyness, BYD, Shoto, Revov, and UZ Energy, providing flexibility in battery selection.
The Lux power 5KW Off-Grid Inverter combines advanced features, robust performance, and reliable power delivery, making it an ideal choice for off-grid power solutions for both residential and commercial applications.
Features and Specifications :
- Model: SNA 5000 WPV
- Battery voltage: 48VDC
- Wifi Remote Monitoring included
- Flexible Working Modes with settable charge and load power supply priority
- Supports Solar and AC hybrid load
- Includes Wifi Dongle
- Warranty: 2 years
Inverter Output :
- Waveform: Pure Sine-wave
- Rated Power: 5000VA/5000W
- Parallel Capability: Yes, 9 units
- AC Voltage Regulation (Battery Mode): 230VAC ± 5% @ 50/60Hz
- Surge Power: 10000VA
- Efficiency (Peak): 93%
- Transfer Time: 10 ms (For Personal Computers); 20 ms (For Home Appliances)
Solar Charger :
- Maximum PV Array Power: 6000W
- 2 MPPT Controllers
- MPPT Range @ Operating Voltage: 100VDC ~385 VDC
- Maximum PV Array Open Circuit Voltage: 480VDC
- Maximum Efficiency: 98%
- Maximum Solar Charge Current: 100A
AC Charger :
- Charge Current: 60A
- AC Input Voltage: 230 VAC
- Selectable Voltage Range: 110-280 VAC (For Personal Computers); 90-280 VAC (For Home Appliances)
- Frequency Range: 50Hz/60Hz (Auto sensing)
Built-in BMS (Battery Management System) compatible with :
- Pylon
- Dyness
- BYD
- Shoto
- Revov
- UZ Energy
