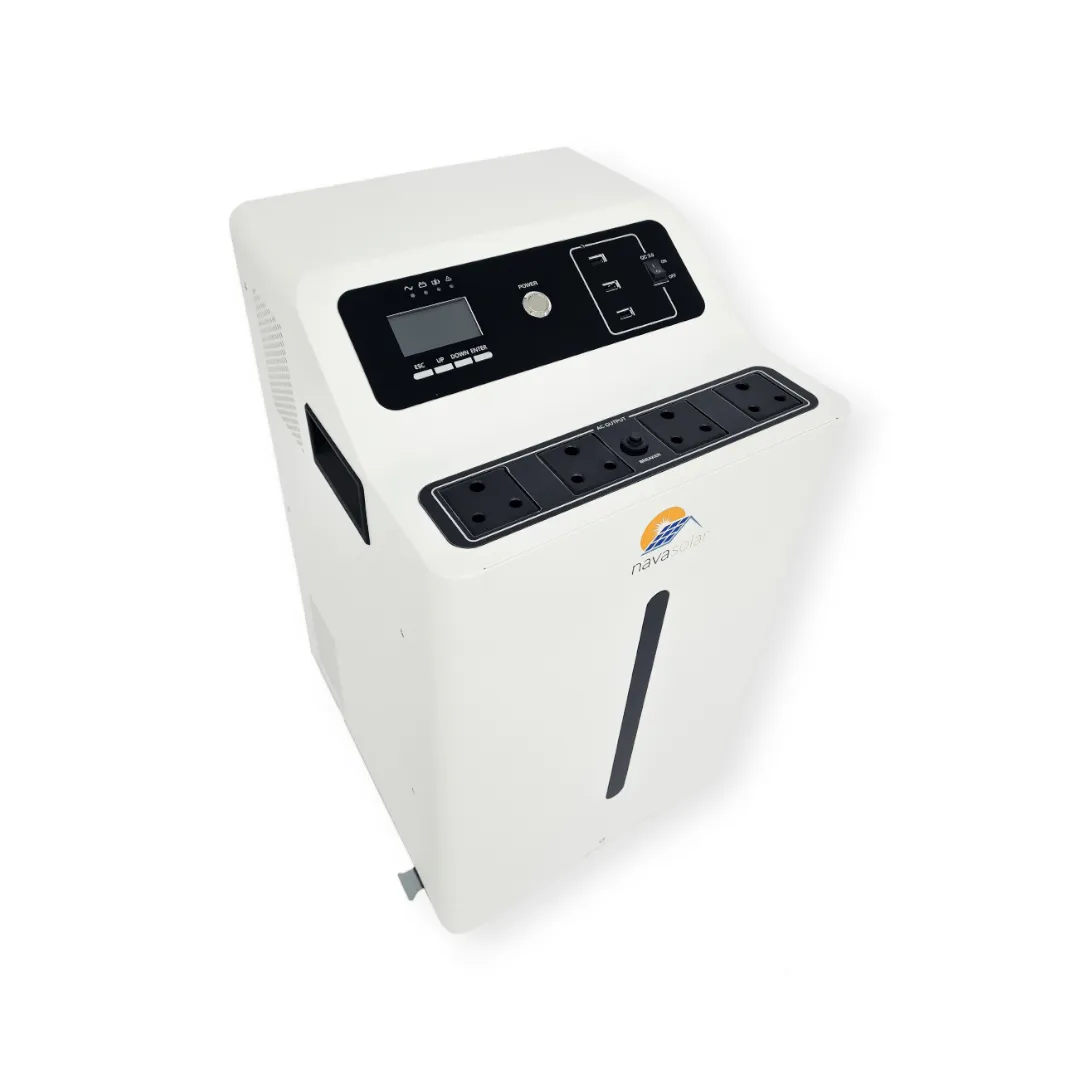

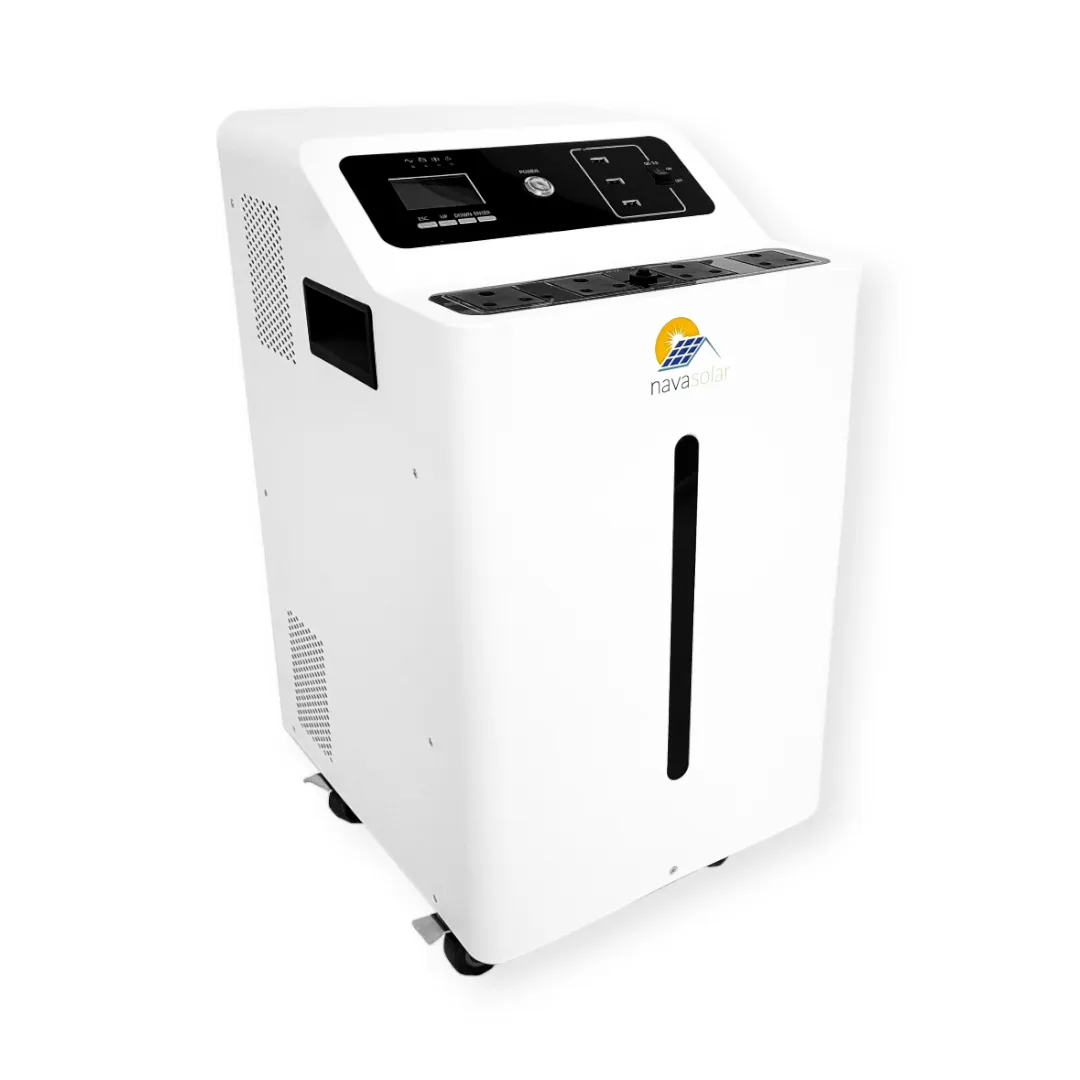

Navasolar Trolley Inverter 3 kW/2.56 kWh Lithium Battery TI-3024 -

Mobile All-In-One ESS;

Mobile and Convenient - Plug and Play;

Features:

• Built-in off-grid solar inverter and lithium battery modules;
• Pre-programmed system with plug and play;
• Output power: 3 kW;
• Battery: 2.56 kWh LIFEPO4;
• Flexible enough to power most home or office appliances to cover load shedding;
• Mobile on wheels for power on the go;
• Enhanced surge/lightning protection;
• AC Breakers and DC fuse protection;
• Combined AC and solar chargers;
• Max 1C charging current for quick recharge (1-2 Hours);
• Equipped with RS232 and USB communication ports for remote monitoring.

What are Trolley Inverters?

• Trolley inverters are power inverters that are designed to convert DC voltage from a battery bank into AC voltage that can be used to power electronic devices and appliances. They are called trolley inverters because they are often designed to be portable and come with wheels and a handle, similar to a trolley or cart, making them easy to move around. Trolley inverters are commonly used in off-grid or backup power systems, where there is no access to grid power or where the grid power is unreliable.
• They can be used in conjunction with renewable energy sources, such as solar panels or wind turbines, to provide a continuous supply of electricity. Trolley inverters come in various sizes and power ratings, ranging from small inverters that can power a few lights and electronic devices to larger inverters that can power entire homes or even businesses. They may also include features such as built-in battery chargers, input/ output ports, and monitoring systems to monitor battery voltage and power output.

What are the Benefits?

• Backup Power: One of the main benefits of using an inverter trolley at home is that it can provide backup power in case of a power outage.

Clean Energy:

• Inverter trolleys can be paired with renewable energy sources such as solar panels, wind turbines, or hydro turbines to provide clean energy.

Noise-Free Operation:

• Inverter trolleys are typically quiet and do not produce any noise or fumes, unlike generators that run on fuel.

Cost-Effective:

• Inverter trolleys can be a cost-effective solution for backup power compared to generators that require fuel and maintenance. They are also more efficient, meaning they can provide more power for a longer period of time on the same amount of battery power.

Easy to Install and Use:

• Inverter trolleys are easy to install and use, and most come with user-friendly interfaces and monitoring systems that allow you to monitor battery voltage, power output, and other parameters.

Mobile All-In-One Energy Storage System, Enjoy The Life Without Load Shedding

Specifications:

• Model: NV-TI-3024
• Rated Inverter Power: 3000 VA/3000 W

Input:

• Voltage: 230 Vac -5%
• Voltage Range: 154-264Vac
• Frequency Range: 40-70 Hz
• AC Input Connection: IEC C20
• PV Input Connection: PP75

Output:

• AC Voltage Regulation (Batt. Mode): 230 VAC -5%
• Surge Power: 3000 VA
• Efficiency (Peak): 93.50%
• Transfer Time: 20 ms (Typical)
• Waveform: Pure Sine Wave
• Output Type: 4 x AC Outlets, 2 x USB PD Ports (QC3.0)

Solar Charger and AC Charger:

• Solar Charger Type: MPPT
• Maximum PV Array Power: 1500 W
• Maximum PV Array Open Circuit Voltage: 30-115 Vdc
• Maximum Solar Charge Current: 640A
• AC Charge Current: 40A
• Maximum Charge Current: 100A

Battery:

• Capacity: 2560 Wh (25.6 V 100 Ah)
• Nominal Voltage: 25.6 Vdc
• Charging Voltage: 27.6 V
• Max Continuous Discharging Current: 100A

Communication:

• Communication Ports: USB/RS232 (Baud Rate 2400)

Protection:

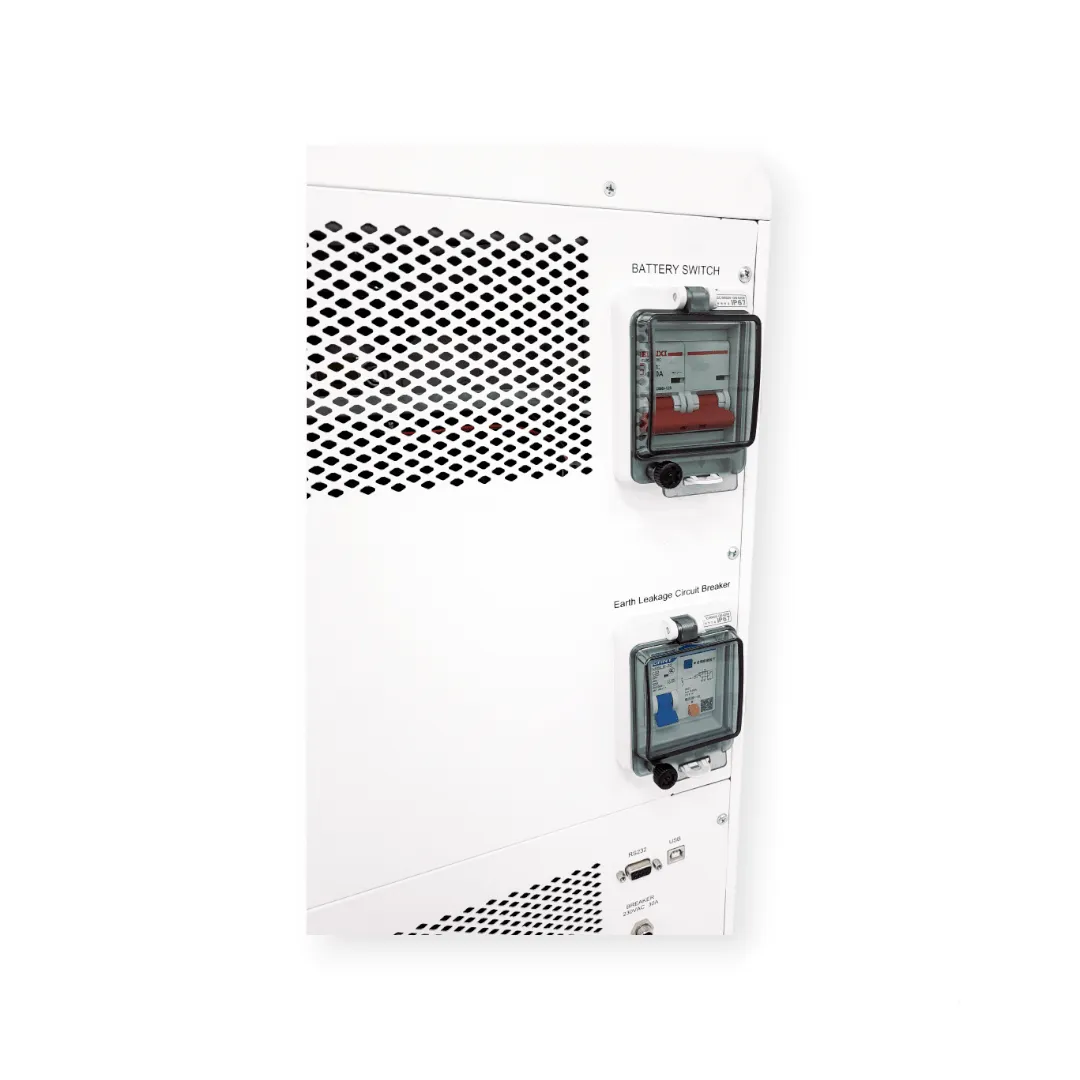

• Protection Type: AC Input/Output Breakers, Battery Switch, Earth Leakage Circuit Breaker

Environment:

• Humidity: 20%-95% (No Condensing)
• Storage Temperature: -15 - 60
• Operation Temperature: 0 - 40

Dimensions Net:

• 330 x 380 x 606
• Weight: 38.7 kg

Dimension Package:

• 465 x 385 x 677
• Weight: 40.62 kg
